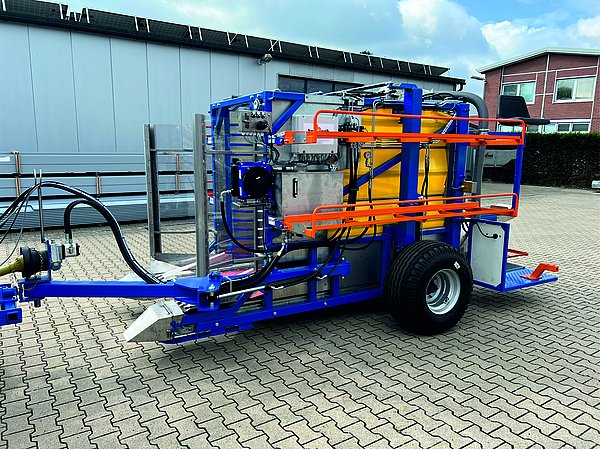

The Harvester 860 P is a trailed blueberry harvester that is pulled by a tractor vehicle and operated via its hydraulics. Certain controls for the harvester are located on the tractor vehicle, others at the rear of the harvester.
The harvested berries are freed from foreign objects such as leaves, stems and branches using an adjustable blower before being collected in crates. Up to 96 of these collection crates can be stacked on the harvester (with a crate size of 400 mm x 300 mm).
The harvester is equipped with automatic plant row recognition.
Length: | 4800 mm |
---|---|
Width: | 2400 mm |
Height: | 2200 mm |
Passage width: | 860 mm |
Passage height: | 1900 mm |
Tyres: | 400/60-15.5" |
Weight: | approx. 1700 kg |
Tractor requirements: | Engine power min.: 45 kW / 60 h |
---|---|
Oil flow rate: 20-30 litres | |
Required control valves: (double-acting): 1 | |
ree return to the oil tank | |
Drawbar load: 350 kg |

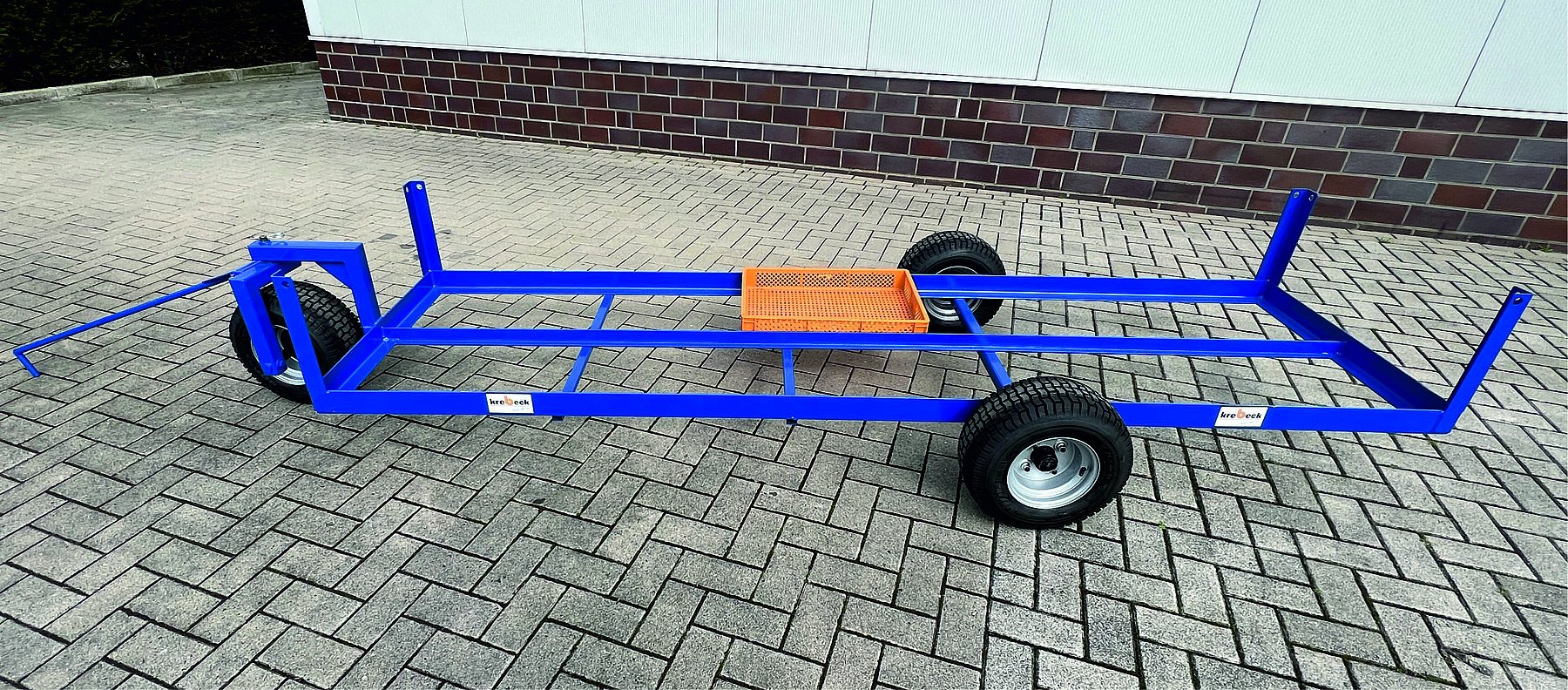

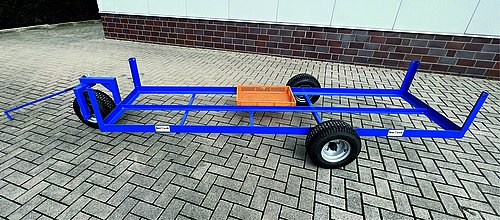

The DSA 4016 is a turntable trailer with road approval (up to 80 km/h). It helps to collect the harvest crates in the field and transport them to the processing site. The loading capacity is 576 stackable crates measuring 400 mm x 300 mm x 145 mm.
Tension locks enable the tail lift to be opened and closed quickly. Wide tyres ensure low ground pressure.
